Accredited Industrial Digital Pressure Gauge Calibration in St. Paul, MN

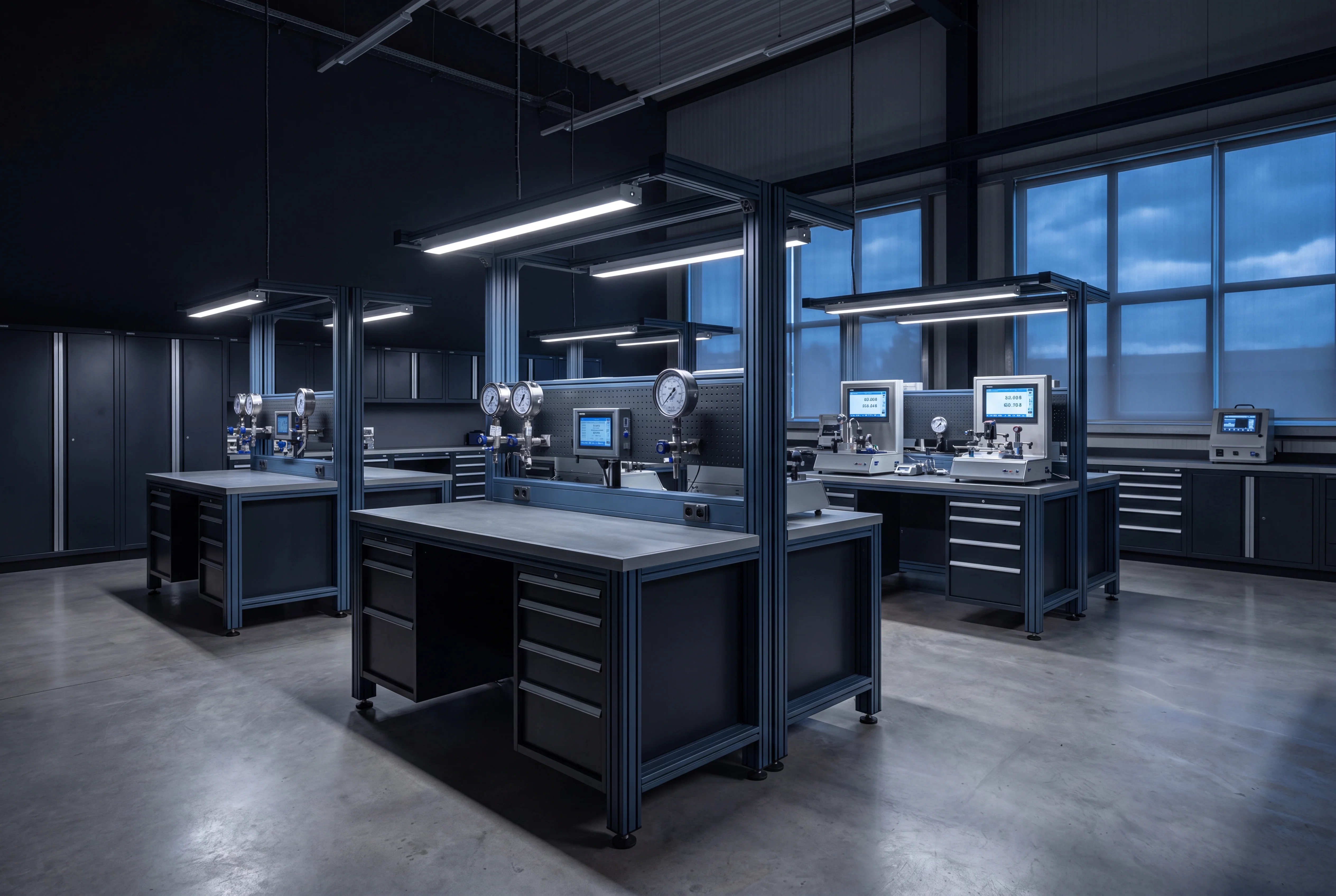

Calibration of a reference digital pressure gauge is executed to establish reliable metrological traceability for secondary instrumentation. Because reference-class gauges typically offer accuracy limits of 0.05% to 0.01% of full scale (FS), the process demands high-stability pressure generation and superior reference standards, such as precision deadweight testers or higher-echelon automated controllers. Calibration is performed in accordance with recognized metrological guidelines, such as EURAMET cg-17 or ASME B40.7, ensuring that measurement integrity is rigorously validated. Pressure is applied across the entire operating range using a multi-point calibration cycle.

To accurately characterize the sensor, measurement data points are recorded in both ascending and descending pressure sequences. This systematic approach enables the precise calculation of critical performance parameters:

• Linearity: The deviation of the gauge's calibration curve from a specified ideal straight line.
• Hysteresis: The maximum difference in output at a specific pressure value when approached with increasing versus decreasing applied pressure.
• Repeatability: The ability of the digital indicator to reproduce consistent readings under identical test conditions.
• Measurement Uncertainty: A quantified parameter associated with the measurement result, critical for maintaining unbroken traceability chains to NIST or the SI.

Environmental conditions, including ambient temperature and local barometric pressure, are continuously monitored and documented, as they directly impact high-accuracy piezoresistive and resonant silicon sensors. Calibration is performed under strict ISO/IEC 17025 accreditation requirements, ensuring robust process controls and technical competence throughout the verification procedure.

Calibration of an absolute reference digital pressure gauge requires establishing a reliable zero-pressure baseline that is entirely independent of local barometric fluctuations. Because absolute pressure is measured against a perfect vacuum, the calibration sequence is initiated by evacuating the test manifold to a deep vacuum before applying targeted positive test pressures. High-precision pressure controllers and absolute reference standards are utilized to verify the instrument's response across its designated span, while stringent environmental controls are maintained to mitigate temperature-induced zero drift or span errors within the internal piezoresistive or resonant silicon sensor arrays. To ensure compliance with stringent metrological requirements and to maintain uninterrupted measurement traceability to the SI through NIST, absolute pressure calibration protocols encompass several critical parameters:

• Zero Baseline Verification: Establishing the absolute zero reference point utilizing high-capacity vacuum pumps and characterized secondary vacuum standards.
• Multipoint Characterization: Execution of linearity, repeatability, and hysteresis testing in accordance with ASME B40.7 standard guidelines for digital pressure instrumentation.
• Media Compatibility: Utilization of clean, dry, non-corrosive gases, such as high-purity nitrogen, to prevent contamination or degradation of the sensing element.
• Accredited Documentation: Recording and evaluation of comprehensive as-found and as-left measurement data, performed under documented ISO/IEC 17025 accreditation.

Calibration of a differential digital pressure gauge requires rigorous isolation and control of pressure media across two independent test ports. Unlike absolute or standard gauge pressure instruments, differential units measure the calculated delta between a high-pressure input and a low-pressure input. Verification is performed to assess both zero stability and span accuracy under varying static line pressures. Test routines typically involve applying equal pressure to both ports simultaneously to quantify common-mode error, followed by differential step configurations spanning the full scale of the instrument. All reference measurements are captured using high-precision digital pressure controllers or automated deadweight testers, ensuring continuous traceability to the International System of Units (SI) through the National Institute of Standards and Technology (NIST).

Routine service protocols for differential digital pressure instruments address multiple technical parameters to satisfy accredited industrial quality requirements:

• Verification of static line pressure specifications and zero-shift compensation.
• Multipoint linearity testing across both ascending and descending pressure cycles.
• Evaluation of media compatibility, utilizing controlled applications of clean dry air, nitrogen, or selected hydraulic fluids.
• Documentation of measurement uncertainty in strict alignment with ISO/IEC 17025 accreditation parameters.
• Calculation of hysteresis and repeatability errors in accordance with ASME B40.100 standard practices.

The concentration of advanced manufacturing, food processing, and medical technology along the Mississippi River and within the Midway Industrial Area of St. Paul, Minnesota, generates a continuous requirement for high-accuracy digital pressure gauge calibration. Facilities operating within the Crosby Lake Business Park and the industrial corridors bordering Interstate 94 rely heavily on electronic pressure measurement to maintain process control and safety limits. The regional supply chain, deeply integrated with aerospace, defense, and bulk chemical processing, demands stringent verification of digital instruments. Variations in ambient seasonal temperatures across the Upper Midwest can influence sensor performance, making localized, traceable calibration essential for maintaining the integrity of electronic piezoresistive and capacitive pressure sensors.
